Quality Control: Measurement, Process Signals and Response

Connect requirements, measurement, process controls and verified response. The labelled map shows Requirements and risks, Trust the measurement, Define the control, Observe the process, Recognize a signal, Contain and respond, Verify restoration, Learn and maintain.
AI-generated system teaching illustration. Follow the steps below, then try the practice question. View full size ↗
← All lessons and training aids

Quality control connects trustworthy measurement with clear decisions and an effective response. Use this chapter when defects recur, inspection results disagree or process signals are hard to interpret. Follow the links between process risks, checks, statistical evidence and verified action.

Fictional teaching examples and AI-generated illustrations. Proposed changes and goals are not achieved results. Use the written instructions and check local conditions before applying a method.

Published by OPEX Studio, a Prometheus Platforms product. Read the method sources and their scope.

On this lesson
Teaching view 1 of 3

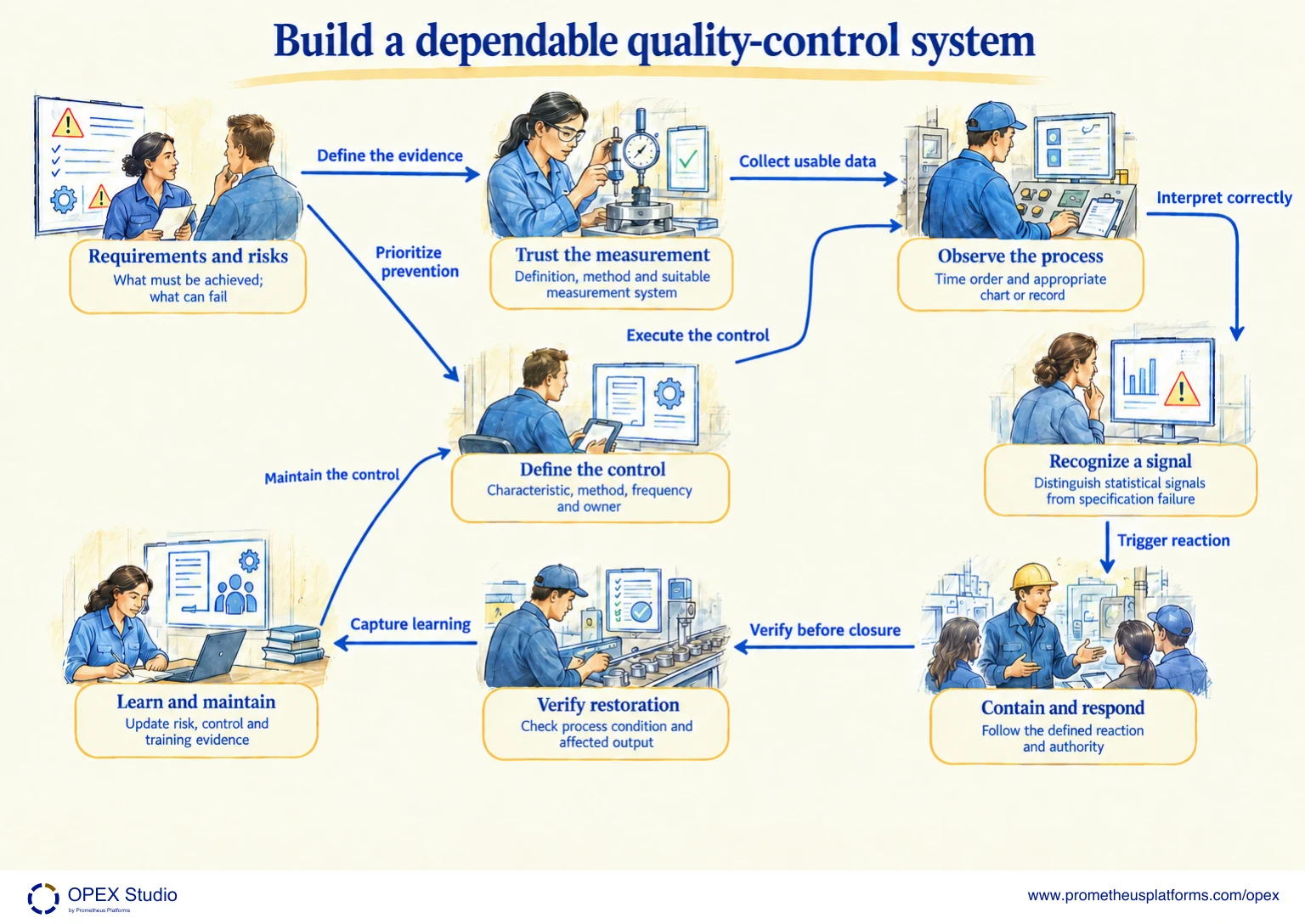

Build a dependable quality-control system

Quality control connects a requirement to an executable routine. Define the characteristic and risk, then establish whether the measurement method can support the intended decision. A control plan names how evidence is collected and who reacts. Time-ordered data may support statistical monitoring, but chart limits do not replace engineering or customer specifications. A signal requires the agreed response, containment where appropriate and verification of restoration. Feed learning into the risk analysis, control plan and training. The map is an introductory relationship model, not a licensed control-plan form or authority to approve product.

Follow the method

  1. Requirements and risks: What must be achieved; what can fail
  2. Trust the measurement: Definition, method and suitable measurement system
  3. Define the control: Characteristic, method, frequency and owner
  4. Observe the process: Time order and appropriate chart or record
  5. Recognize a signal: Distinguish statistical signals from specification failure
  6. Contain and respond: Follow the defined reaction and authority
  7. Verify restoration: Check process condition and affected output
  8. Learn and maintain: Update risk, control and training evidence

Read the example carefully

Control limits describe process behavior; specification limits express requirements.

Choose a chart from data type and sampling structure.

Containment, correction and verified recurrence prevention are different decisions.

Try it before revealing the answer

A chart is stable but measurements exceed a specification. Can the team release the product because the chart is in control?

Reveal the answer and reasoning

No. Statistical stability and conformity answer different questions. Follow product disposition and the control-plan reaction while investigating capability and relevant causes.

Teaching view 2 of 3

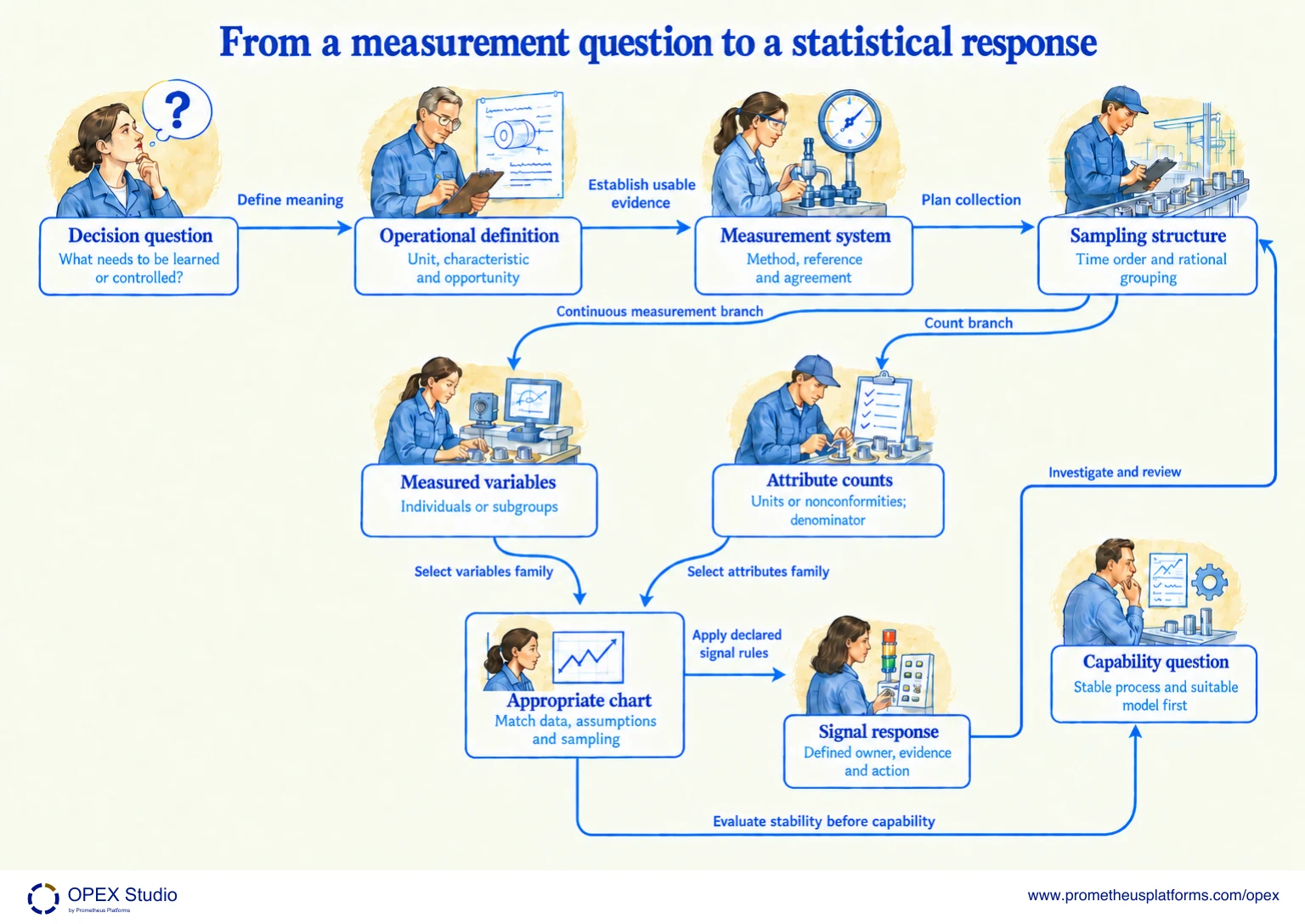

From a measurement question to a statistical response

Choose trustworthy data and a suitable monitoring method before interpreting signals. The labelled map shows Decision question, Operational definition, Measurement system, Sampling structure, Measured variables, Attribute counts, Appropriate chart, Signal response, Capability question.
AI-generated system teaching illustration. Follow the steps below, then try the practice question. View full size ↗

A statistical routine starts with a decision question, not with a favorite chart. Define what is measured, what constitutes a unit or defect and which denominator is relevant. Check the measurement system and preserve collection order and sampling structure. Measured variables and attribute counts require different chart families; even within counts, nonconforming units and nonconformities are different data. Match the chart to these definitions and its assumptions. Agree the signal rules and reaction owner before using it. Capability asks whether a stable process can meet requirements under a suitable model. A chart does not establish conformity, capability or a cause merely by being drawn.

Follow the method

  1. Decision question: What needs to be learned or controlled?
  2. Operational definition: Unit, characteristic and opportunity
  3. Measurement system: Method, reference and agreement
  4. Sampling structure: Time order and rational grouping
  5. Measured variables: Individuals or subgroups
  6. Attribute counts: Units or nonconformities; denominator
  7. Appropriate chart: Match data, assumptions and sampling
  8. Signal response: Defined owner, evidence and action
  9. Capability question: Stable process and suitable model first

Read the example carefully

Nonconforming units differ from numbers of nonconformities.

Subgroup structure and time order matter to interpretation.

Capability interpretation requires stability and an appropriate distribution/model; a histogram alone is insufficient.

Try it before revealing the answer

The same unit can contain several scratches, and inspected surface area varies. Why is a fixed-size defective-unit chart not automatically appropriate?

Reveal the answer and reasoning

Clarify whether the decision counts scratched units or individual scratches. For nonconformities, preserve the exposure denominator and evaluate a suitable rate chart and assumptions. Do not select a chart from the word defect alone.

Teaching view 3 of 3

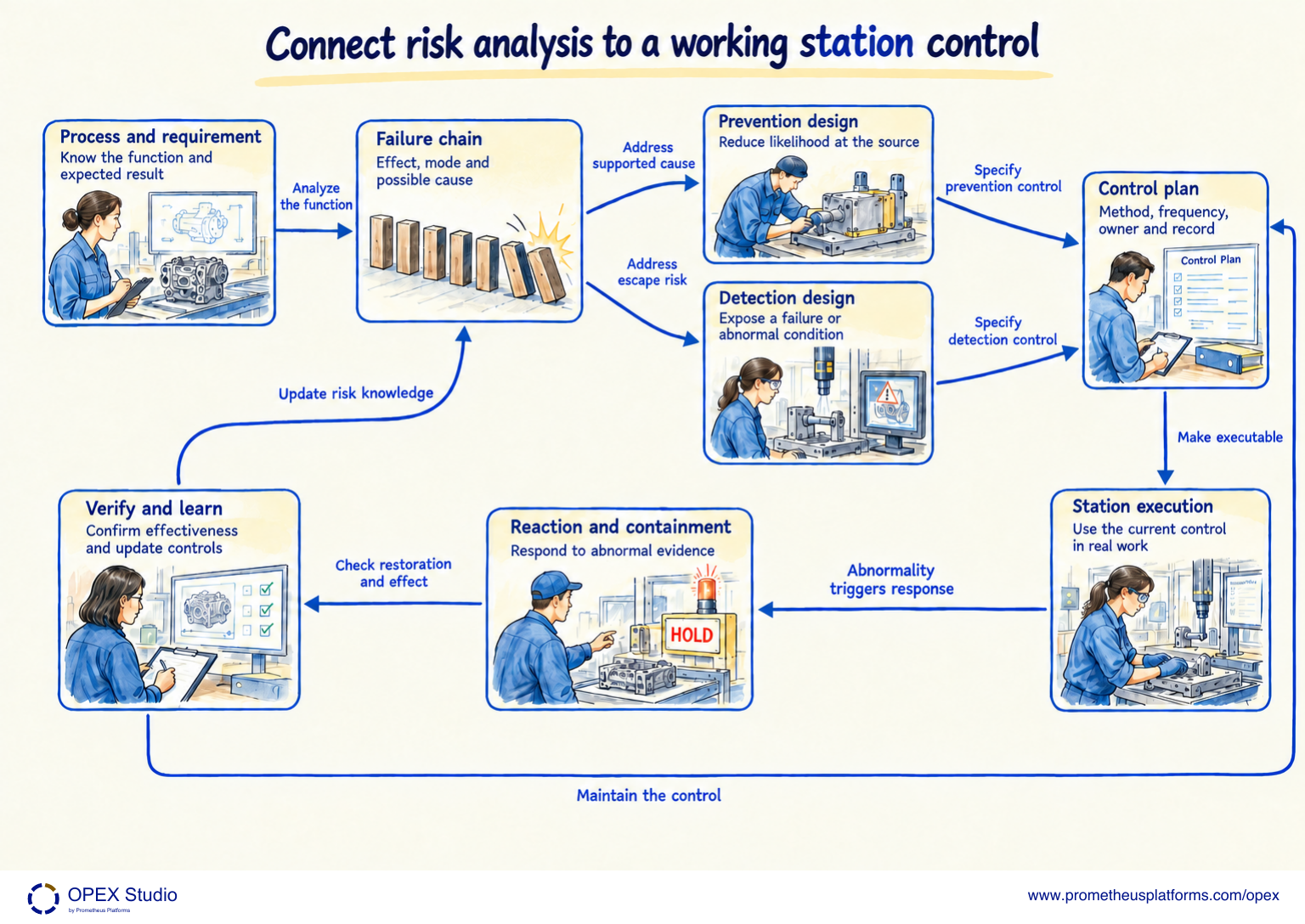

Connect risk analysis to a working station control

Trace a failure risk into prevention, detection, reaction and verified effectiveness. The labelled map shows Process and requirement, Failure chain, Prevention design, Detection design, Control plan, Station execution, Reaction and containment, Verify and learn.
AI-generated system teaching illustration. Follow the steps below, then try the practice question. View full size ↗

Risk analysis should connect the process function to plausible failure modes, effects and causes. Prevention and detection have different roles: preventing incorrect assembly differs from detecting it and stopping release. Translate the selected controls into an executable plan with a method, frequency, owner, record and reaction. Then observe whether the station actually uses the current control. A layered process audit checks execution of critical controls; it does not replace product verification. When an abnormality occurs, protect affected output, restore the process under the defined authority and verify the effect. Feed evidence back to both the risk analysis and the control plan.

Follow the method

  1. Process and requirement: Know the function and expected result
  2. Failure chain: Effect, mode and possible cause
  3. Prevention design: Reduce likelihood at the source
  4. Detection design: Expose a failure or abnormal condition
  5. Control plan: Method, frequency, owner and record
  6. Station execution: Use the current control in real work
  7. Reaction and containment: Respond to abnormal evidence
  8. Verify and learn: Confirm effectiveness and update controls

Read the example carefully

A detection-and-stop device is not the same as error prevention.

FMEA prioritization depends on the required method; no rating or Action Priority tables are reproduced.

An audit completion mark is not product-release evidence.

Try it before revealing the answer

A sensor detects reversed parts but the line continues and no owner handles the alert. Which link is missing?

Reveal the answer and reasoning

The detection is not connected to an effective reaction and release boundary. Define the stop or hold response, responsible owner, restoration verification and record; then test the complete control, not only the sensor.

Build on reliable methods
