Control special processes through qualified conditions and records

Control special processes through qualified conditions and records

Special-process control links the job to qualified conditions and objective records. Determine the relevant process, customer and scope requirements before deciding which qualifications or assessments apply. Connect approved procedures, competent personnel, equipment status and required monitoring to the actual job identity. When conditions deviate, preserve the evidence and use the authorized disposition route instead of assuming final appearance proves acceptability. Automotive special-process assessments and aerospace Nadcap accreditation are distinct programs with their own applicability. This lesson teaches the evidence chain only. It deliberately provides no furnace recipe, chemical limit, welding parameter or claim that one generic checklist satisfies every special process.

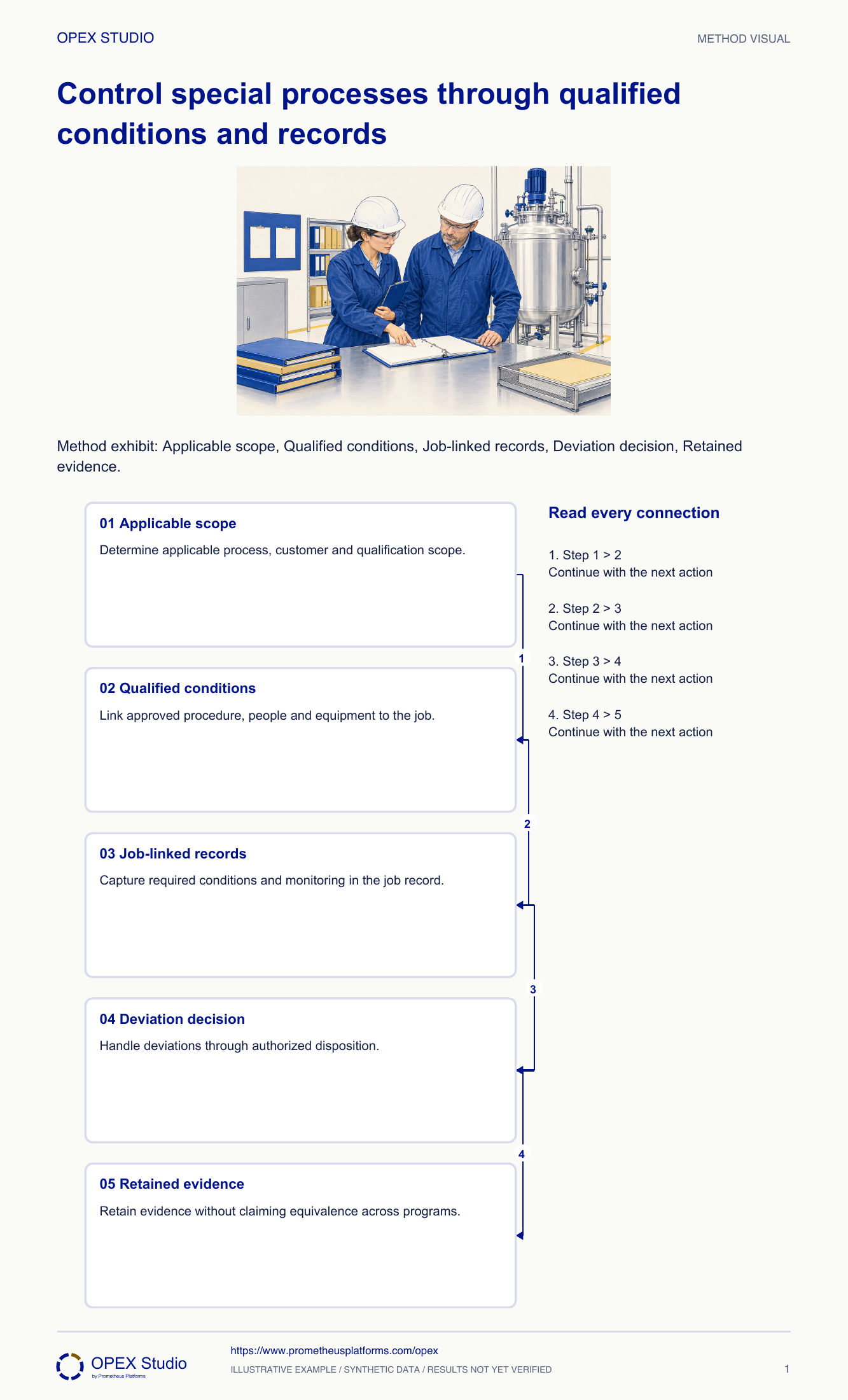

Follow the method

1. Applicable scope
2. Qualified conditions
3. Job-linked records
4. Deviation decision
5. Retained evidence

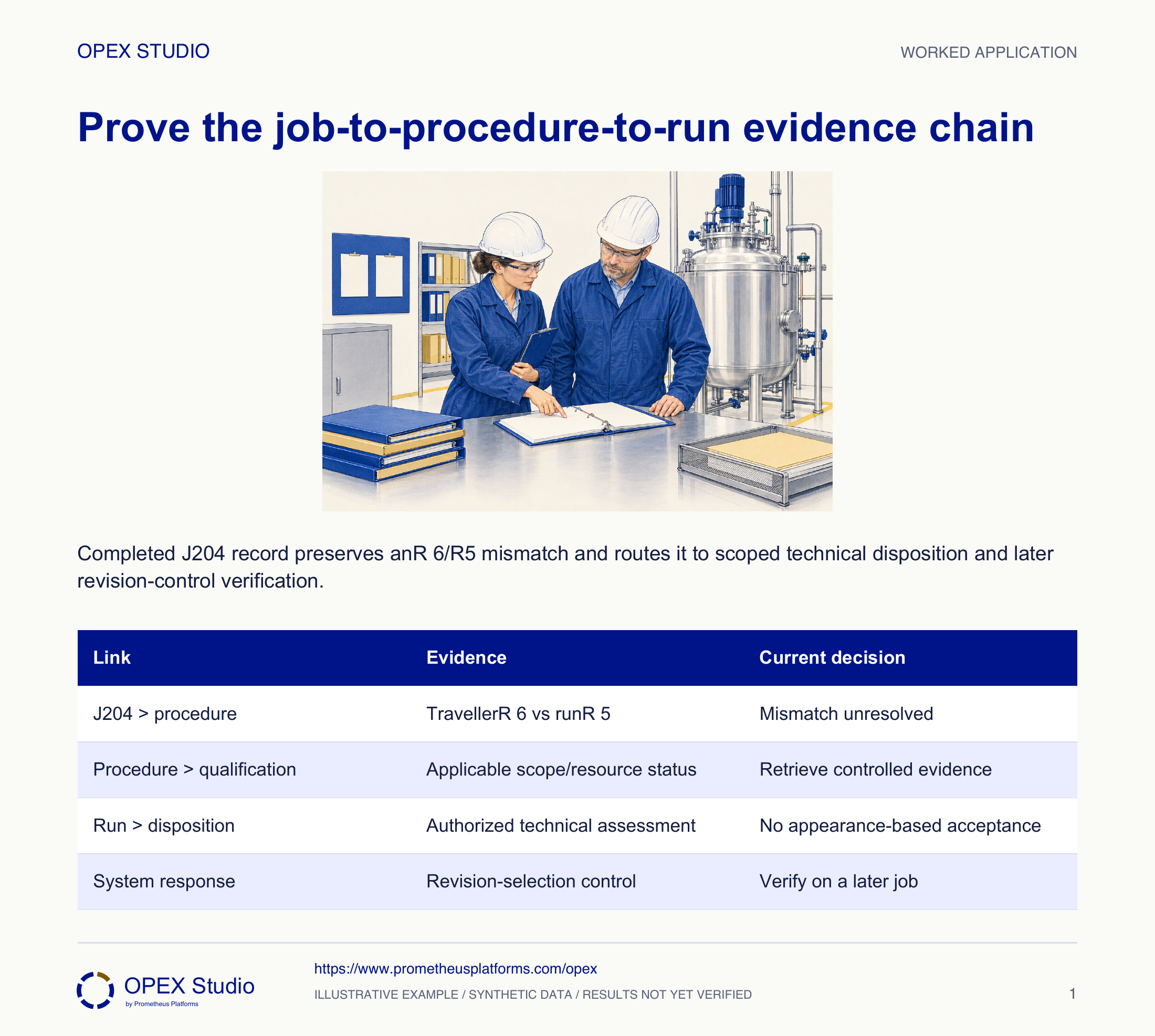

Prove the job-to-procedure-to-run evidence chain

Fictional case: a special-process job J204 has a traveller naming procedure revision R6, but the retained run record references R5. Coordinator Sam must determine whether the job was performed under the applicable approved conditions. The core lesson retains the three evidence links—job identity, approved process revision and recorded run—with no technical recipe values.

Follow the method

1. J204→procedure
2. Procedure→qualification
3. Run→disposition
4. System response

The final test cannot recreate the missing process record

Connect a job to applicable scope, qualified conditions and retained run evidence, and route deviations through the authorized process.

Fictional case: a special-process job J204 has a traveller naming procedure revision R6, but the retained run record references R5. Coordinator Sam must determine whether the job was performed under the applicable approved conditions. The core lesson retains the three evidence links—job identity, approved process revision and recorded run—with no technical recipe values.

Role: Special-process coordinator with responsible engineering and quality

Normal condition

Applicable customer/program scope, procedure, personnel, equipment and run evidence are connected to the actual job; deviations have defined authority.

The gap

The team proposes accepting the job because the finished surface looks good, without resolving the procedure-revision mismatch.

• No temperature, time, chemistry, pressure or machine-setting prescription is provided.
• Automotive CQI assessments and Nadcap accreditation have different applicability and are not interchangeable.

1. Determine the applicable scope

   Sam identifies the actual process, site, customer and program requirements. He checks which qualification or assessment framework applies rather than borrowing another commodity’s checklist.

   Why: A broad company certificate cannot establish every special-process scope. Applicability precedes evidence evaluation.

   Evidence: The review names the relevant process scope and authorized requirement source.

2. Bind the job to approved conditions

   He matches J204 to the controlled procedure, required personnel/equipment status and applicable revision. The teaching record points to those authorities without supplying technical settings.

   Why: The job must be traceable to the conditions that were actually approved for it. A generic “qualified” label omits the scope and time of that status.

   Evidence: The evidence map identifies procedure and resource-status records.

3. Reconcile the actual run record

   Sam compares R6 on the traveller with R5 in the run evidence and retrieves controlled change and execution records. He preserves both original references.

   Why: A revision mismatch may reflect recording error, wrong execution or a change that needs technical assessment. Rewriting the run reference before investigation would erase that distinction.

   Evidence: The gap is logged as unresolved, with source records retained.

4. Route the deviation for authorized assessment

   Responsible engineering and quality determine the necessary evidence, product status and disposition under the applicable requirements. Sam does not infer acceptance from appearance or invent a reprocessing recipe.

   Why: Some process characteristics cannot be fully verified by later inspection alone. The correct response depends on the actual process and requirement authority.

   Evidence: The deviation record names the decision owner and required technical review.

5. Close and prevent the record mismatch

   After an actual decision, the team retains its basis, corrects records through controlled amendments and addresses the revision-selection weakness. A subsequent job checks the improved linkage.

   Why: A tidy folder is not enough; the underlying job-to-procedure-to-run relationship must be reliable. Closure distinguishes product disposition from the system action.

   Evidence: The follow-up verifies a later job using the intended controlled revision.

A valid accreditation covers another process

The supplier presents an accreditation record for a different commodity or site.

Verify the actual accredited scope and applicable customer requirement; do not treat the unrelated record as evidence for J204.

Qualification and accreditation are scope-specific. Similar branding or company ownership does not establish coverage.

The review identifies the mismatch and requests the correct scope evidence.

Run a practice session

Materials

• Traveller/run references
• Scope cards
• Blank gap record

1. Define applicability · 5 minutes

   Which process and site are actually covered?

2. Trace the mismatch · 8 minutes

   What different explanations fitR 5/R6?

3. Work the missing segment · 10 minutes

   Which evidence must not be invented?

4. Debrief verification · 5 minutes

   How will the next job prove the capture fix?

Debrief

• Do not ask learners to provide technical recipe values.
• Keep current-job disposition separate from future system reliability.

Draw the three evidence links and mark each as established, inconsistent or missing.

Transfer into the work

Owner: Special-process engineering and quality owners

Record: Scoped job/procedure/run evidence and authorized deviation decisions

Review: At each required job review and after controlled changes

Evidence: Correct identity, applicable qualification and complete required records

Escalate missing or inconsistent evidence; verify the corrective control on later relevant work.
