Stop the recurring leak

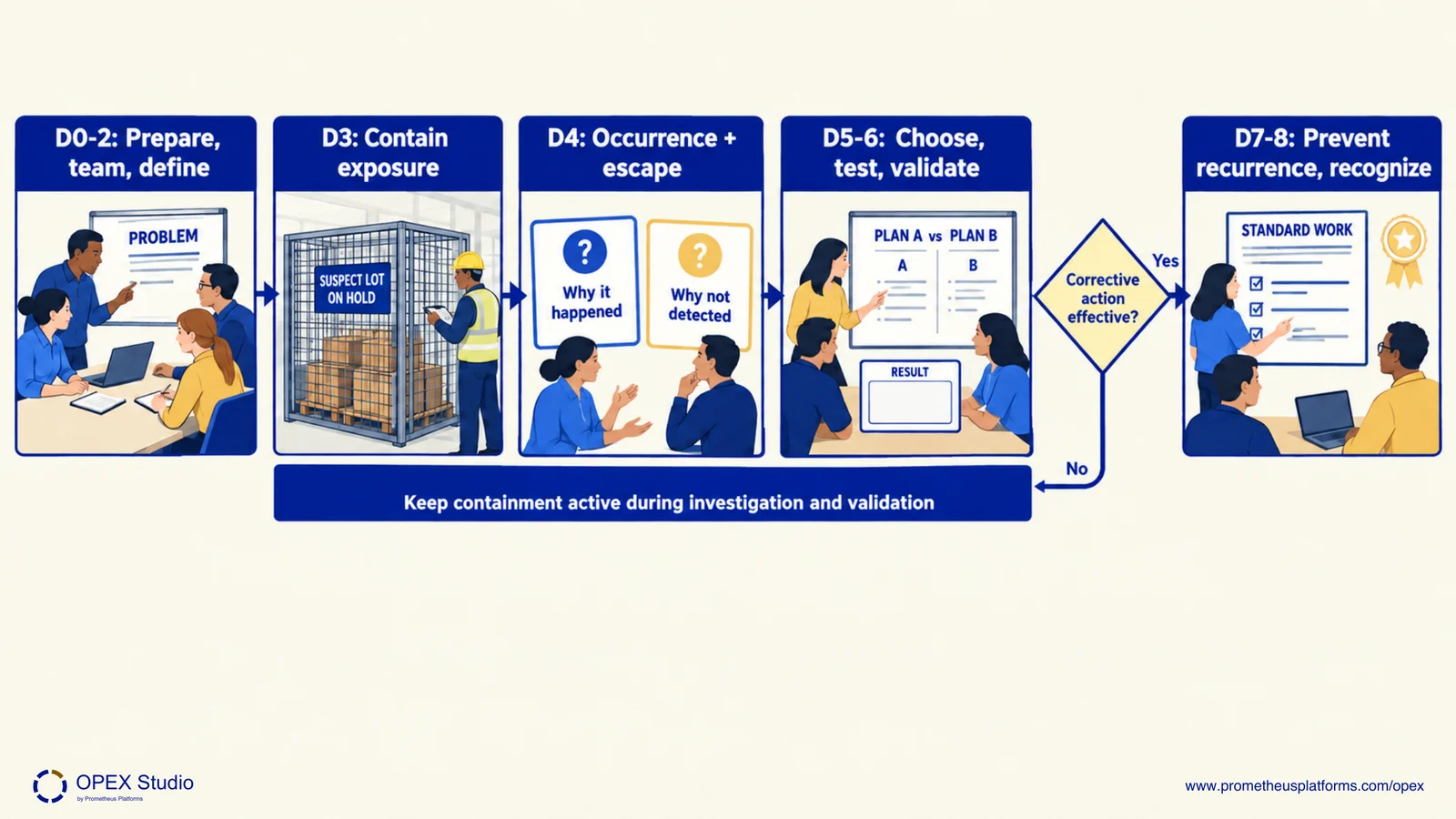

The 8D stages lead through a corrective-action effectiveness gate before recurrence prevention, with containment retained during investigation and validation.
AI-generated teaching illustration. Follow the steps below, then try the practice question. View full size ↗
← Back to the worked example

The existing sample has 144 first-test failures in 2400 valves. Begin by defining the affected product, defect and observation period. Temporary containment limits exposure while the team investigates both why the leak occurred and why the process failed to prevent or detect it earlier. Keep possible causes separate from confirmed causes. The proposed 1.5% goal is not a result. Carry a verified corrective action into normal work and review recurrence before retiring containment.

Fictional teaching examples and AI-generated illustrations. Proposed changes and goals are not achieved results. Use the written instructions and check local conditions before applying a method.

Published by OPEX Studio, a Prometheus Platforms product. Read the method sources and their scope.

On this lesson
Teaching view 1 of 2

Contain the leak; verify the cause

The existing sample has 144 first-test failures in 2400 valves. Begin by defining the affected product, defect and observation period. Temporary containment limits exposure while the team investigates both why the leak occurred and why the process failed to prevent or detect it earlier. Keep possible causes separate from confirmed causes. The proposed 1.5% goal is not a result. Carry a verified corrective action into normal work and review recurrence before retiring containment.

Follow the method

  1. D0-2: prepare, team, define
  2. D3: contain exposure
  3. D4: occurrence + escape
  4. D5-6: choose, test, validate
  5. D7-8: prevent recurrence, recognize

Read the example carefully

D0 prepares the work where used. D1 forms the team; D2 defines the problem; D3 contains exposure; D4 verifies occurrence and escape causes; D5 selects and tests permanent action; D6 implements and validates; D7 prevents recurrence; D8 recognizes the team.

Containment protects while investigation continues. Correcting affected units and removing a verified cause are different actions.

Try it before revealing the answer

A fixture association is visible. Is that enough to select permanent corrective action?

Reveal the answer and reasoning

No. Use it to select a discriminating test; preserve containment while checking the cause and the detection gap.

Teaching view 2 of 2

Turn a plausible explanation into a cause test

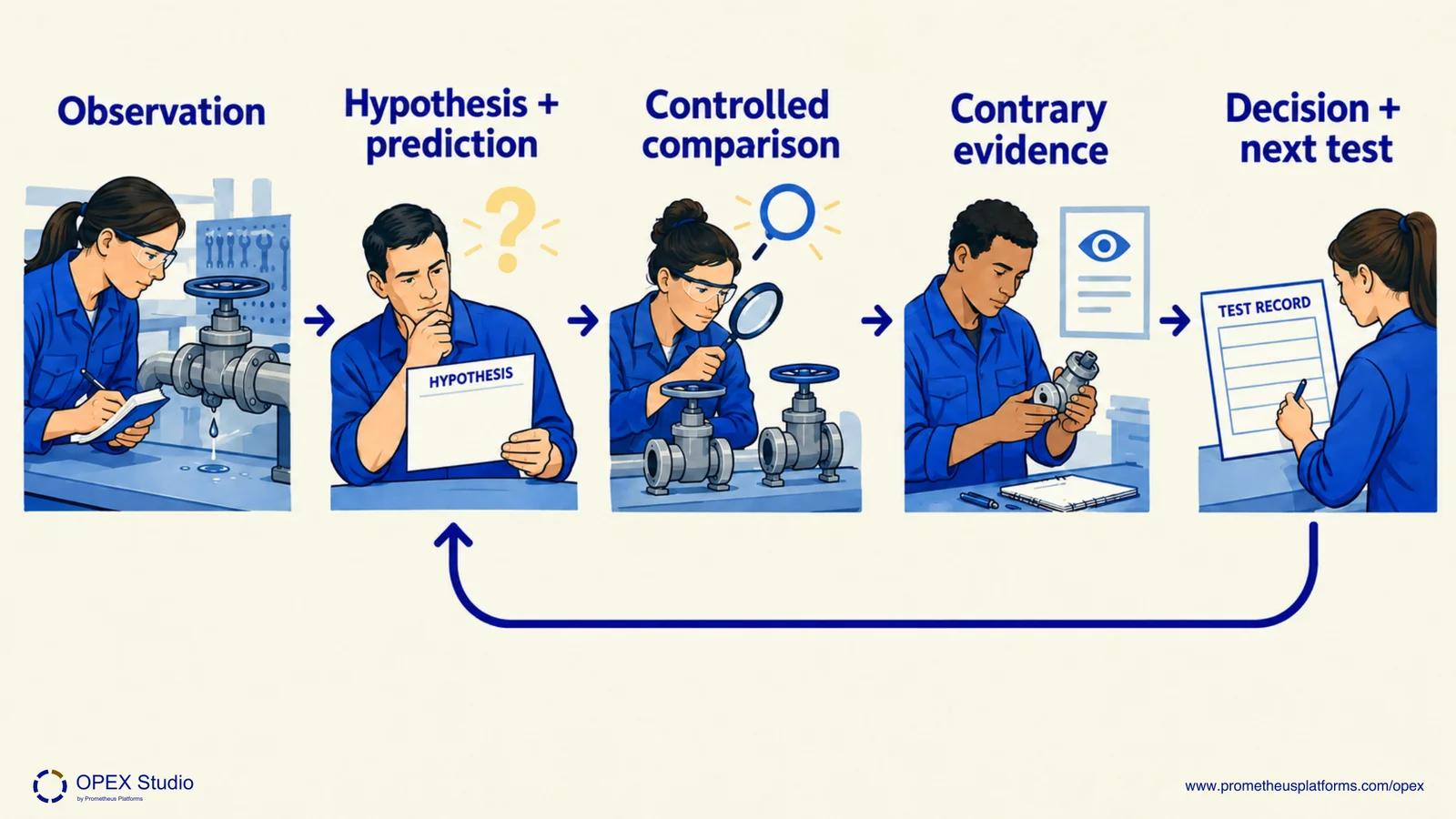

A valve-leak observation leads to a hypothesis, planned comparison, contrary evidence and a blank test-decision record.
AI-generated teaching illustration. Follow the steps below, then try the practice question. View full size ↗

Write the predicted result before running a controlled comparison. Specify what stays comparable, how failures will be measured, and what result would challenge the explanation. The retained pilot gate of no more than 4 first-test failures in 300 and later validation gate of no more than 36 in 2400 are separate planned checks, not proof already obtained. A small pass alone does not establish long-term performance.

Follow the method

  1. Observation
  2. Hypothesis + prediction
  3. Controlled comparison
  4. Contrary evidence
  5. Decision + next test

Read the example carefully

Fixture A: 110 failures / 1,200 tested = 9.17%; fixture B: 34 / 1,200 = 2.83% (rounded). Material, operator and time differences may confound this association.

Teardown categories: rolled seal 82; low torque indication 34; other or undetermined 28. Total 144. Categories and rates guide investigation, not a causal conclusion.

The planned pilot gate is ≤4 / 300; the later validation gate is ≤36 / 2,400. No future results have been supplied.

Try it before revealing the answer

What is the difference between relabelling or repairing affected units and changing the cause?

Reveal the answer and reasoning

The first corrects those units; corrective action changes a verified cause and requires an effectiveness check.

Build on reliable methods

Sources and further reading

  • ASQ — Eight Disciplines 8D ↗

    8D progresses through team formation, problem definition, containment, verified occurrence and escape causes, permanent correction selection, effectiveness validation, recurrence prevention and team recognition; some organizations add D0 preparation.

    Brainstorming does not verify a cause; interim containment is distinct from permanent corrective action.
  • ASQ — Fishbone Diagram ↗

    Fishbone diagrams organize possible explanations into categories to support exploration and further analysis.

    A diagram branch is a candidate explanation, not automatically a verified cause.
  • ASQ — Handbook of Corrective and Preventive Action, Sample ↗

    Correction resolves a detected nonconformity, such as through repair or rework; corrective action addresses its causes to prevent recurrence.

    The handbook sometimes groups correction and containment; a three-way teaching distinction should be identified as an explicit convention.
