Check inspection agreement and escape risk
Overall agreement can conceal the error that matters most. Establish a defensible reference classification and include representative, difficult items. A full attribute study uses blinded repeats and multiple appraisers to examine consistency within people, between people and against the reference. The single matrix here illustrates denominator choices only. False acceptance asks what fraction of reference-bad items escaped; false rejection asks what fraction of reference-good items were rejected. Both differ from overall agreement. Report the counts and uncertainty rather than declaring success from one percentage. A reference itself can be uncertain, so unresolved classifications need an explicit adjudication method.
Follow the method
- Reference bad
- Reference good
- Classified reject
- Classified accept
- Overall agreement: 37/40 = 92.5%
- False acceptance among bad: 2/20 = 10%
- False rejection among good: 1/20 = 5%
Read the example carefully

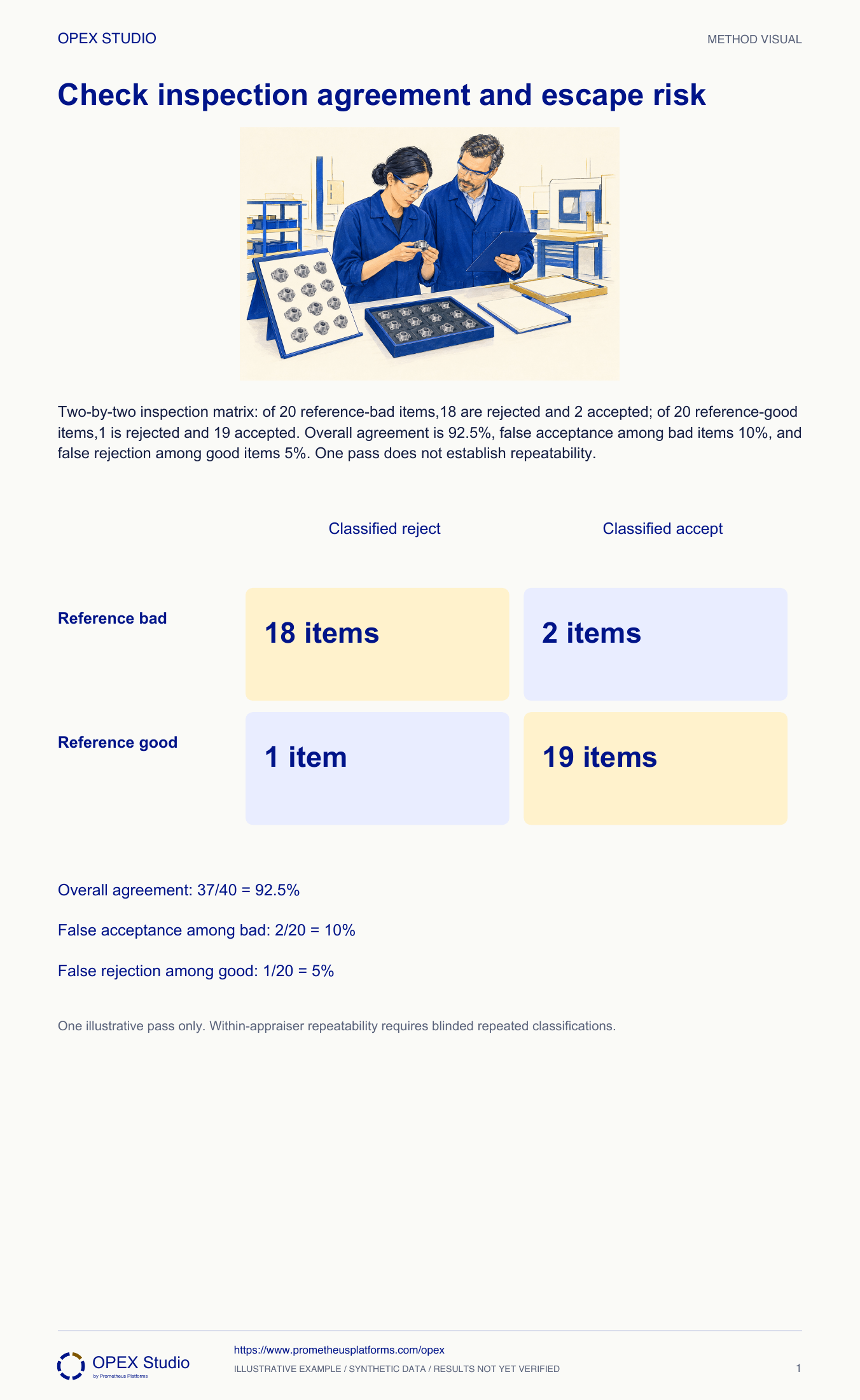

Reference bad20:18reject,2accept; reference good20:1reject,19accept.
Agreement37/40=92.5%; false acceptance2/20=10%; false rejection1/20=5%.
A single matrix does not establish within-appraiser repeatability.
Read agreement and both error directions separately
Fictional case: inspector Leo assesses 40 reference items. Of 20 reference-bad items,18 are rejected and 2 accepted. Of 20 reference-good items,19 are accepted and 1 rejected. The core matrix retains these exact counts. The team calls 92.5% agreement proof that inspection is repeatable.
Follow the method
- Overall agreement
- False acceptance among bad
- False rejection among good
- Repeatability
Read the example carefully
Resolve or explicitly classify the reference uncertainty before using that item to score an appraiser’s correctness. Preserve the disagreement as useful method evidence.
A forced reference label could turn legitimate ambiguity into an apparent operator failure. This is a method-definition issue as well as a training question.
High agreement can hide an important error direction
Read a reference-classification matrix, distinguish overall agreement from the two error directions, and recognize the limits of a single pass.
Fictional case: inspector Leo assesses 40 reference items. Of 20 reference-bad items,18 are rejected and 2 accepted. Of 20 reference-good items,19 are accepted and 1 rejected. The core matrix retains these exact counts. The team calls 92.5% agreement proof that inspection is repeatable.
Role: Inspection-method owner and appraiser coach
Normal condition
Reference status is trustworthy for the defined characteristic; item identity and decision are retained; repeated and between-appraiser comparisons are designed separately.
The gap
One aggregate percentage hides false acceptance and false rejection, and one pass has no repeated classifications from which to judge repeatability.
- This is an illustrative single pass, not a completed attribute measurement-system qualification.
- The balanced 20/20 reference sample is not a production prevalence estimate.
| Reference class | Rejected | Accepted |
|---|---|---|
| Bad | 18 | 2 |
| Good | 1 | 19 |
Verify reference and observation identity
Leo’s coach confirms the definition of good/bad and how the reference decisions were established. Each item keeps one identity linked to Leo’s classification.
Why: Agreement against a questionable reference does not establish correctness. The comparison must concern the same characteristic and decision rule.
Evidence: Forty item records reconcile to the two reference groups.
Read both correct cells
Correct classifications are 18 bad rejected plus 19 good accepted, totaling 37. Overall agreement is 37/40=92.5%.
Why: Agreement counts matches to the reference across both classes. It says nothing yet about consistency on a repeated blind pass.
Evidence: The reported numerator is 37, not merely the count of accepted items.
Separate false acceptance
Two of the 20 reference-bad items were accepted, giving 10% false acceptance among bad items in this study.
Why: The denominator is the reference-bad group. Dividing by all 40 would answer a different question and conceal the conditional risk direction.
Evidence: The record identifies the two item IDs for review without claiming a production escape rate.
Separate false rejection
One of 20 reference-good items was rejected, giving 5% false rejection among good items. The coach preserves this distinction from false acceptance.
Why: Both errors matter but can have different consequences. A single combined error percentage can obscure what instruction or decision boundary needs attention.
Evidence: The review retains separate error directions and their respective denominators.
Design the next evidence
The coach plans blinded repeat classifications and, where appropriate, other appraisers using representative cases including difficult boundaries. Prior answers are not shown during repeat assessment.
Why: Within-appraiser consistency, between-appraiser agreement and reference agreement are different questions. Repetition must be designed to measure them rather than rehearse remembered labels.
Evidence: The next study plan states the comparison and keeps its results blank until performed.

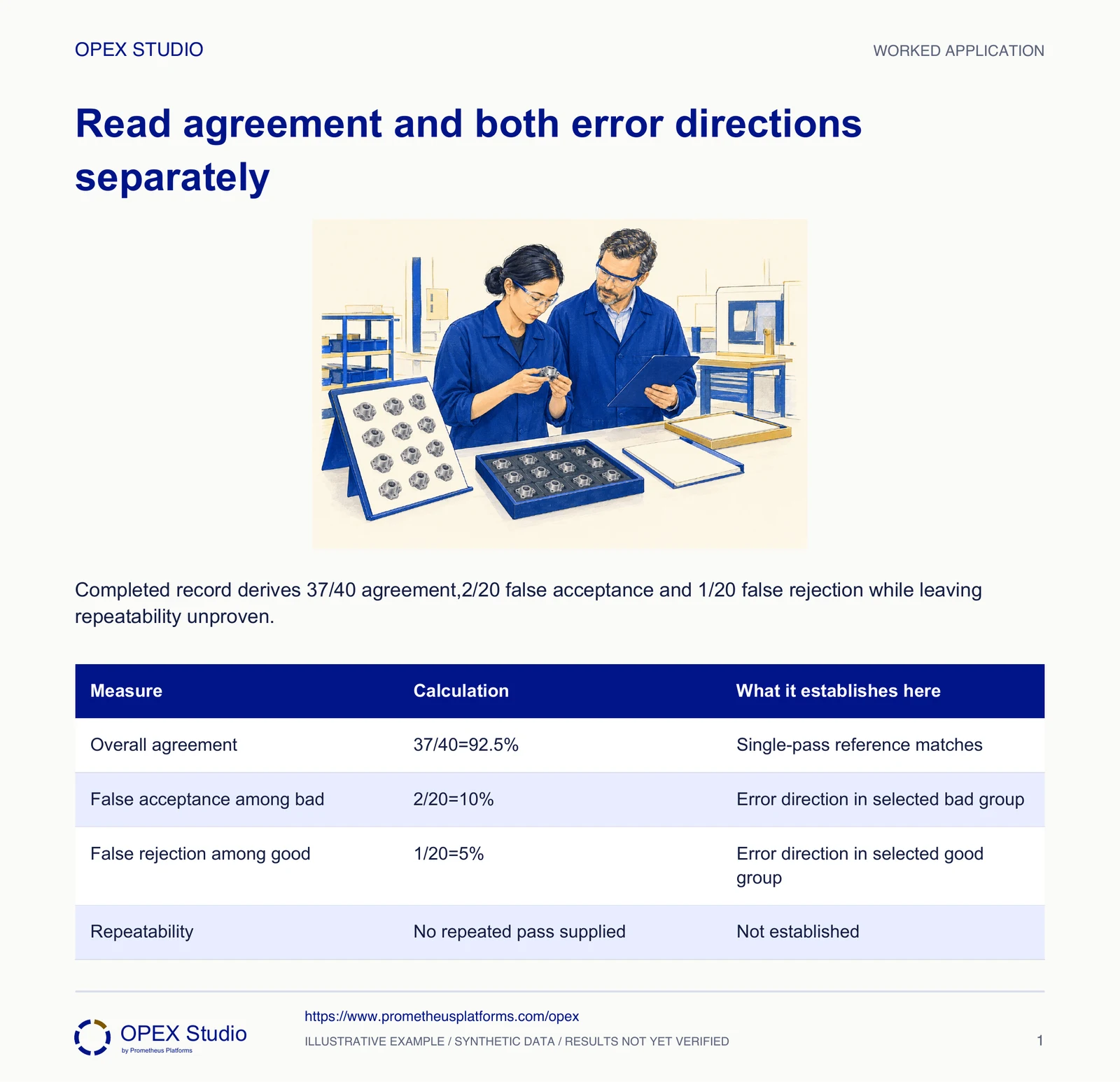

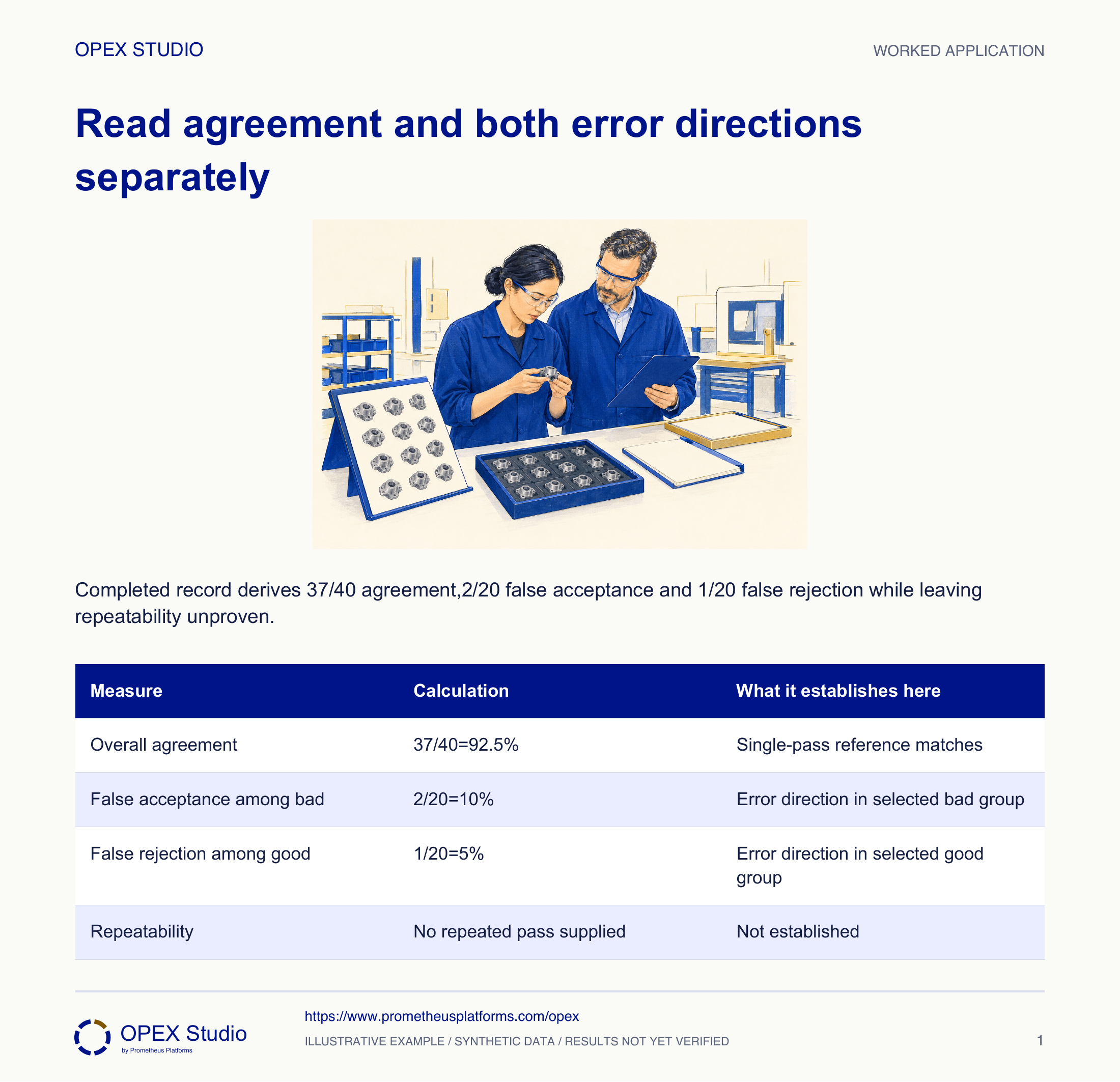

| Measure | Calculation | What it establishes here |
|---|---|---|
| Overall agreement | 37/40=92.5% | Single-pass reference matches |
| False acceptance among bad | 2/20=10% | Error direction in selected bad group |
| False rejection among good | 1/20=5% | Error direction in selected good group |
| Repeatability | No repeated pass supplied | Not established |
Reference status is disputed
One item marked reference-bad has conflicting expert assessments and no resolved decision rule.
Resolve or explicitly classify the reference uncertainty before using that item to score an appraiser’s correctness. Preserve the disagreement as useful method evidence.
A forced reference label could turn legitimate ambiguity into an apparent operator failure. This is a method-definition issue as well as a training question.
The study record states reference uncertainty and the responsible adjudication process.
A new matrix with different class sizes
New fictional pass:30 reference-bad items yield 27 rejected and 3 accepted;10 reference-good items yield 8 accepted and 2 rejected.
| Reference class | Rejected | Accepted |
|---|---|---|
| Bad | 27 | 3 |
| Good | 2 | 8 |
Your task
- Calculate overall agreement and each conditional error rate.
- Explain why overall agreement alone hides the poorer good-item result.
- State what remains unknown about repeatability.
Prepare your worksheet
- Reference group counts
- Correct cells
- False-accept calculation
- False-reject calculation
- Next study question
Reveal the answer and reasoning
Overall agreement=(27+8)/40=87.5%. False acceptance among bad is 3/30=10%; false rejection among good is 2/10=20%.
The unequal reference groups weight the overall result differently. A single pass still cannot establish within-appraiser repeatability; blinded repeated classifications are needed for that question.
| Metric | Numerator / denominator | Result |
|---|---|---|
| Agreement | 35/40 | 87.5% |
| False acceptance | 3/30 | 10% |
| False rejection | 2/10 | 20% |
Check these interpretations
- 92.5% single-pass agreement is not repeatability.
- The chosen reference mix is not automatically the production mix.
Check your work
- Use the correct reference-group denominators.
- Explain each error direction.
- Keep reference uncertainty and repeated-study design visible.
Run a practice session
Materials
- Reference/classification cards
- Blank matrix
- Separate answer sheet
- Define a matrix cell · 5 minutes
Which items belong in false acceptance?
- Compare three percentages · 8 minutes
What denominator changes?
- Work unequal groups · 10 minutes
Which error is hidden by one total?
- Debrief next evidence · 5 minutes
How would a repeat be kept blind?
Debrief
- Ask learners to explain the consequence of each error without inventing a universal threshold.
- Treat disputed reference examples as method evidence, not automatic appraiser blame.
Color the two matching cells, then calculate each conditional rate from its own reference row.
Transfer into the work
Owner: Inspection-method owner
Record: Reference basis, item-level classifications, agreement/error summaries and action record
Review: After instruction changes and during planned measurement review
Evidence: Representative blind comparisons and resolved decision criteria
Clarify references or method, coach targeted errors and verify with new blinded opportunities.
